BUILDING INFORMATION MODELING (BIM)

Linking of people, technology and processes to improve outcomes in building and construction stages.

BIM replaces traditional 2 dimensional drawings with a complete 3 dimensional, data-driven model of the structure. By using this technology we are able to streamline and improve the design and construction process for our client, project owner and end user.

BIM MATURITY LEVELS

BIM LEVEL 0

Simplest of form, no collaboration, 2D CAD drafting only is utilised, mainly for Produce Information. Output and distribution is via paper or electronic print.

BIM LEVEL 1

Mixture of 3D CAD for concepts works and 2D for Drafting of statutory approval documentation and production information.
CAD Standard are manage to BS1192:2007
Electronic sharing data is carried out from common data environment (CDE)

BIM LEVEL 2

Distinguished by collaborative working and required an information exchange process which is specific to that project and coordinates between various system and project participant

Term as “Open BIM”
The scope of level 3 hasn’t been completely defined
Level 3 concept enables all participants to works on the same model simultaneously which eliminates the changes of conflicting information

LEVEL OF DEVELOPMENT UNDER THIS

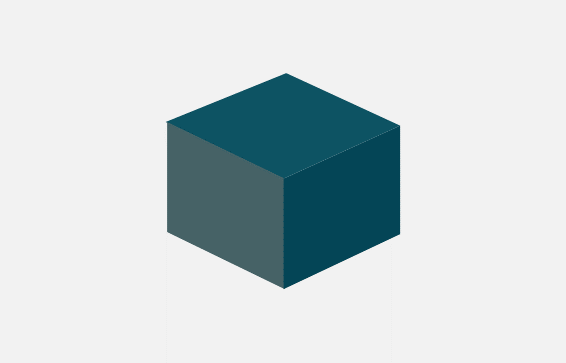

LOD 100 : Concept Design

3D model represent the information on basic level

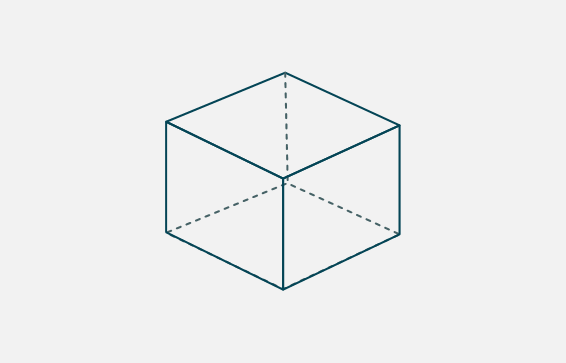

LOD 200 : Schematic design

General model where elements are modeled with approximate quantities, size, shape, location and orientation

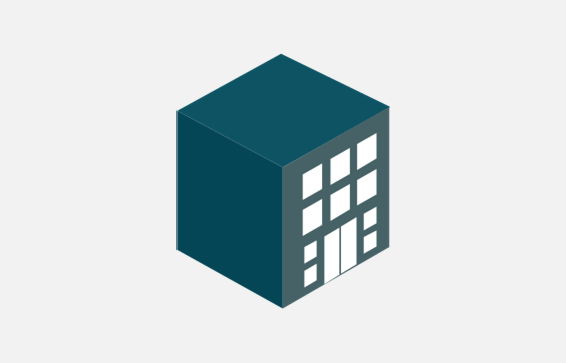

LOD 300 : Detail Design

The model element is graphically represented within the model as a specific system, object or assembly in terms of quantity, size, shape, location and orientation

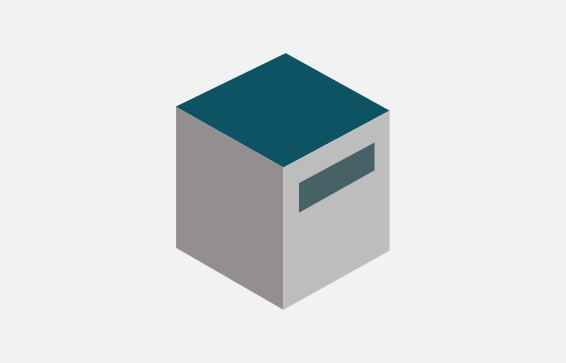

LOD 350 : Construction Documentation

It includes model detail and element that represents how building elements interface with various systems and other building elements with graphics and written definitions

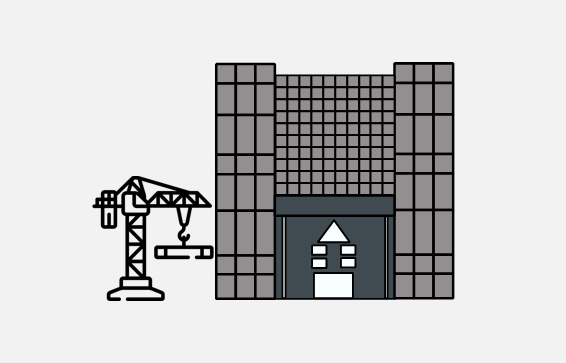

LOD 400 : Fabrication and Assembly

Model elements are modeled as specific assemblies, with complete fabrication, assembly and detailing information in addition to precise quantity, size, shape, location and orientation

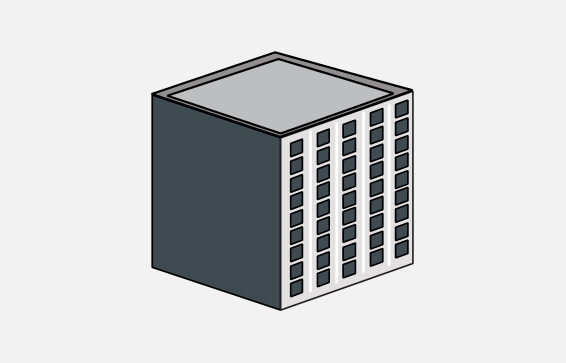

LOD 500 : As-Built

Elements are modeled as constructed assembles for maintenance and operation. In addition to actual and accurate size, shape, location, quantity and orientation
